yaris-obd

A Raspberry Pi 3-based OBD-II, GPS, and dashcam system for a 2013 Toyota Yaris. Reads live vehicle data over USB, tracks position with a SIM868 GNSS/GSM HAT, logs everything locally, and serves a web UI over the car's own WiFi hotspot. The dashboard and pre-cached map work fully offline, while trip data and dashcam footage sync to a self-hosted remote server whenever an internet uplink is available.

rené lévesque bangers i have a dream

Screenshots

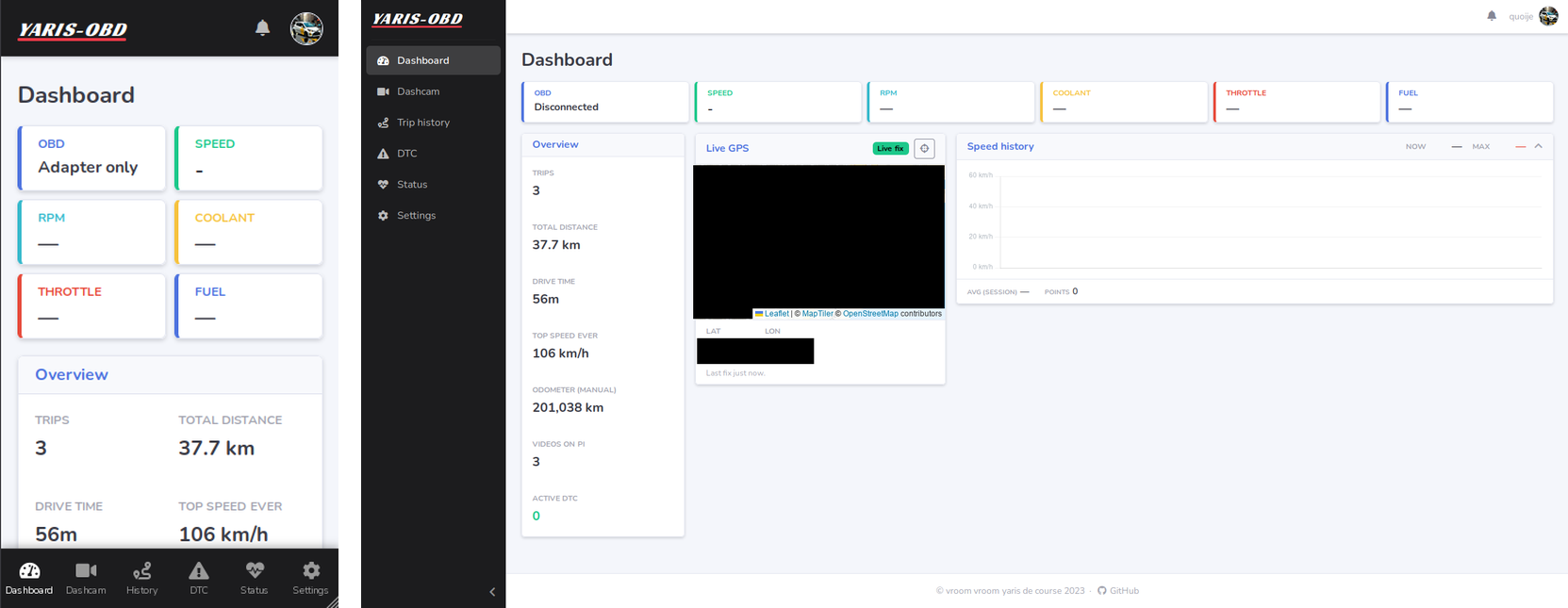

Dashboard — mobile (390 px) and desktop (1280 px):

Features

• Live OBD-II data — speed, RPM, coolant temp, fuel level, throttle, MIL/DTC via USB ELM327. Automatic reconnects with clear adapter/ECU diagnostics. DTC codes persist across reboots and can be cleared straight from the DTC page.
• Real GPS tracking — Waveshare SIM868 GNSS HAT with GPIO PWRKEY auto-power-on. Live position plotted on an offline Leaflet map (pre-cached tiles, no internet needed).
• WiFi hotspot — fast 5GHz in-car AP on a T3U (wlan1), internet uplink (home WiFi + phone hotspot) on a second T3U (wlan2); the onboard radio is a fallback. SSID/password configurable from the Settings page.
• Dashcam workflow — auto-detects any USB dashcam, mounts read-only, browses files before importing. Import one, selected, or all files. Delete individual or all files directly from the dashcam. Verified against real 28GB/87-file hardware.
• Local video library — browse imported clips with cached thumbnails and upload status. Inline H.264 playback with seeking. Local-only delete. Optional auto-retention after confirmed upload.
• Remote sync — trip logs and dashcam footage upload to a self-hosted Flask + Postgres server. Dashcam videos stream in resumable 40MB chunks. Independent toggles for trip and dashcam uploads.
• Remote web portal — login-protected at the server URL. Trip history with CARTO live map and route replay, dashcam archive with inline player, overview stats, device management (create/delete/rotate keys), and server-side device identity sync that hot-reloads on the Pi.
• Trip history and replay — motion-aware detection (OBD wheel speed primary, GPS displacement fallback). Metric summaries, offline route polyline, play/pause timeline with moving marker and live reverse-geocoded location names. Tap-to-replay on mobile. Captures OBD speed before the first GPS fix so rolling starts aren't lost.
• Status page — Pi health (temp, RAM, disk, uptime, throttling), service states, uplink/server/ GPS/OBD diagnostics, and quick actions (test server, sync now, reconnect uplink, restart app).
• Offline-first alerts — notification bell on every page for check-engine, storage pressure, upload backlog, temperature/power faults, and GPS loss while moving. Optional ntfy push.
• Manual odometer — Pi Settings page accepts a baseline reading; dashboard computes odometer = baseline + trip distance. Synced to the remote server; portal shows read-only value.
• Device config sync — server-side owner name, car model, display name, avatar path, and sync toggle hot-reload on the Pi without restart. Multi-device management on the portal with create/rotate/delete keys and one-time API-key reveal.
• Reverse geocoding — /api/geocode uses reverse_geocoder offline (no internet needed), upgrades to Nominatim street-level when online. LRU-cached. Results pre-loaded for trip scrubbing.
• Android companion app — native Kotlin app in android/ (Phase 28, in progress). Dual-network on the phone: browse + download dashcam clips over the car's WiFi, relay uploads over cellular. Networking gate + dashcam browser/download verified on a Pixel; cellular upload in progress.
• Offline web UI — Flask, Bootstrap 5, Socket.IO, Chart.js, Leaflet. All assets served locally. Responsive with collapsible sidebar and mobile bottom nav.
• Headless deployment — systemd service with auto-restart, 10-second hardware watchdog, and nftables port-80 redirect. Deploy scripts in deploy/.

Hardware

Part	Notes
Raspberry Pi 3 Model B Rev 1.2	Web UI host, logger, uploader, and WiFi hotspot
Waveshare SIM868 HAT	GNSS (GPS) + optional GSM/GPRS uplink, unused Bluetooth
USB OBD-II adapter	PL2303-based, ELM327-compatible (originally Bluetooth, switched to USB)
2× TP-Link Archer T3U (RTL8812BU)	USB WiFi dongles — AC1300 dual-band. wlan1 hosts the 5GHz in-car AP; wlan2 carries the internet uplink since 2026-08-14
Onboard BCM43438 (wlan0)	Fallback only — was the internet uplink until 2026-08-14
USB dashcam	Any brand — detected as generic USB mass storage
2013 Toyota Yaris	The patient

See PLAN.md for full hardware bring-up notes (SIM868 jumper/UART setup, antenna gotchas, etc.) and the detailed project history.

Getting started

python3 -m venv venv
source venv/bin/activate
pip install -r requirements.txt
python3 app.py

The app serves on http://<host>:5000. On the Pi it runs as a systemd service and is reachable with no port number at http://yaris.local after installing the mDNS and port-redirect setup. Deployment helpers for the app service, hotspot watcher, port redirect, and hardware watchdog are in deploy/. For a clean-install walkthrough on a fresh Pi, use deploy/readme.md. See PLAN.md for the full hardware/project history.

For the remote server (receives trip logs + dashcam uploads), see server/README.md.

Customizing device identity

The Pi displays an owner name, car model, device name, and avatar. You can manage those values in two ways:

• Locally on the Pi through the Settings page
• From the server portal when Sync with server is enabled on the Pi

The local fallback/default source remains config/device.json, so the car still boots with sensible identity values even when fully offline.

Edit device configuration

Edit config/device.json:

{
  "owner_name": "quoije",
  "car_model": "Yaris 2013",
  "device_name": "Yaris OBD",
  "avatar_path": "img/yaris.png"
}

Field	Location	Purpose
owner_name	Top-right of app topbar	Your name/username
car_model	Left sidebar (next to car icon)	Vehicle model/year
device_name	Local settings / remote portal	Device identity used by server sync/provisioning
avatar_path	Top-right avatar circle	Profile picture (relative to static/)

If you edit the JSON file directly, restart the app:

# If running as a systemd service:
sudo systemctl restart yaris-obd.service

# If running manually:
# Ctrl+C and python3 app.py

Changing the profile picture

Option 1: Replace the default image file:

cp /path/to/your/image.png static/img/yaris.png

Option 2: Add your image to static/img/ and update avatar_path:

{
  "avatar_path": "img/my-avatar.png"
}

Important: Username and database filename

The local SQLite database filename is based on owner_name: db/sql/<owner_name>_<car_model>.db (via modules/app_sql.py).

If you change owner_name and already have trip data:

• The app will create a new database with the new name
• Your old database remains at db/sql/quoije_Yaris2013.db (orphaned)

To preserve your data:

# Option 1: Rename the database file
mv db/sql/quoije_Yaris2013.db "db/sql/YourName_YourCar.db"

# Option 2: Start fresh
rm db/sql/quoije_Yaris2013.db

Project status

The Pi app, remote server, device sync, and the Android companion app are implemented and verified on real hardware. Phase 25 (road test) ✅, Phase 26 (road-test bug fixes — 13 bugs) ✅, Phase 27 (feature additions — DTC history sync, manual odometer, hotspot settings + 5GHz WiFi swap, trip-history odometer) ✅. Phase 28 (Android companion app) 🚧 in progress — networking gate + dashcam browser/download done, cellular upload queue in progress.

Full phase history and verification notes live in PLAN.md. Open issues in BUGS.md. Feature requests in FEATURES.md.

Diagnostics & recovery

If something goes wrong in the car, SSH in and run:

bash ~/app/yaris-obd/scripts/diagnose.sh        # read-only health check
bash ~/app/yaris-obd/scripts/diagnose.sh --fix  # attempt auto-fix

Checks service state, OBD/UART hardware, disk/DB health, upload backlog, Pi throttling, and prints a cheatsheet of recovery commands. Exit code = number of critical issues found.

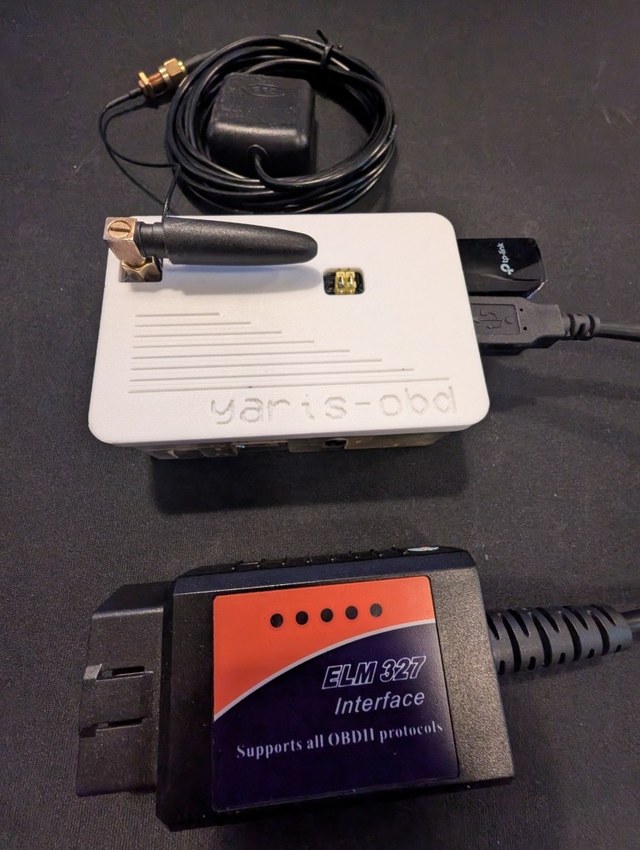

Hardware photo
